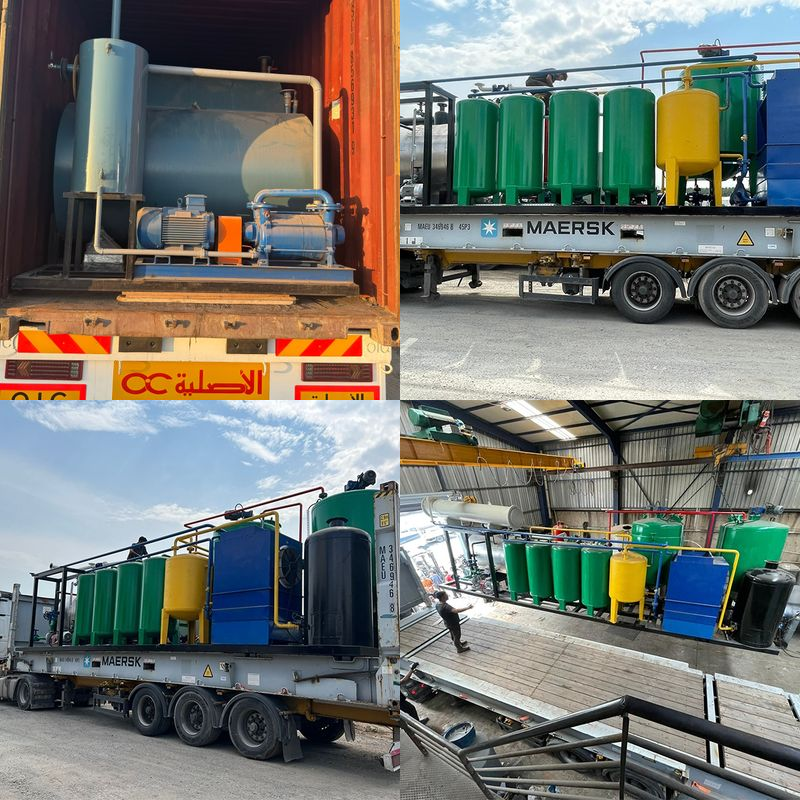

Mobile Mineral Oil Distillation Units - Eco-Friendly
The latest generation of mobile vacuum distillation units for recycling used oils into high-quality base oils, with high efficiency and low environmental impact across different sites. Capacities range from 1 to 15 tons per batch.
Project Concept
Mobile eco-friendly mineral oil distillation units with capacities from 1 to 15 tons per batch.
Project Overview
The mobile distillation unit provides a flexible and efficient solution for processing mineral oils at various sites, reducing transport costs and increasing recycling efficiency.
Main Components
Key equipment and units that make up the production line
Receiving Tank
10-Ton Capacity Reactor
2 Heat Exchangers
Cooling Tower with 4 60*60 Fans
3 Receiving Receivers
Distribution Tree
Vacuum Pump
Vacuum Cooling Unit
Vacuum Gas Treatment Unit
Transfer Pumps
Mixer
Operating Cycle
Cycle duration: 8-10 hours per operation cycle
- 1Load used mineral oil into receiving tank
- 2Transfer to reactor and heat
- 3Process through heat exchangers and cooling tower
- 4Separate fractions under vacuum
- 5Collect products in receiving receivers
Input / Output Ratios
Approximate production yields at different capacities
| Capacity | Raw Input | Base Oil | Light Distillates / Diesel | Heavy Residue | Losses / Moisture / Vapors |
|---|---|---|---|---|---|
| Batch Size | 1 - 15 Tons | 65% - 75% | 10% - 15% | 5% - 8% | 5% - 10% |
Project Advantages
Mobile and portable design
Scalable capacity for different needs
High quality output products
Efficient vacuum processing
General Technical Specifications for Production Unit by Ton/Day Capacity
- Operating Capacity: 7 tons/cycle (8-10 hours)
- Heating System: Direct-fire heating with a high-efficiency combustion chamber
- Operating Temperature Range: 250 - 380 °C
- Operating Pressure (Vacuum): 0.5 - 5 mbar
- Materials: Iron supporting structure treated with anti-corrosion layers
- Condensers/Exchangers: High-efficiency tubular exchanger + optional shell condenser
- Operating/Vacuum Pumps: Calculated power to secure low-pressure boiling & reduce actual distillation temp.
- Power/Fuel Consumption: Designed for lowest consumption, optional full thermal insulation
- Safety/Control: Safety valves, temp/pressure sensors, gauges, full industrial control panel
- Certifications: ISO compliant design, optional CE certification
- Expected Yields depend on used oil type, impurities, vacuum level, and condenser efficiency.

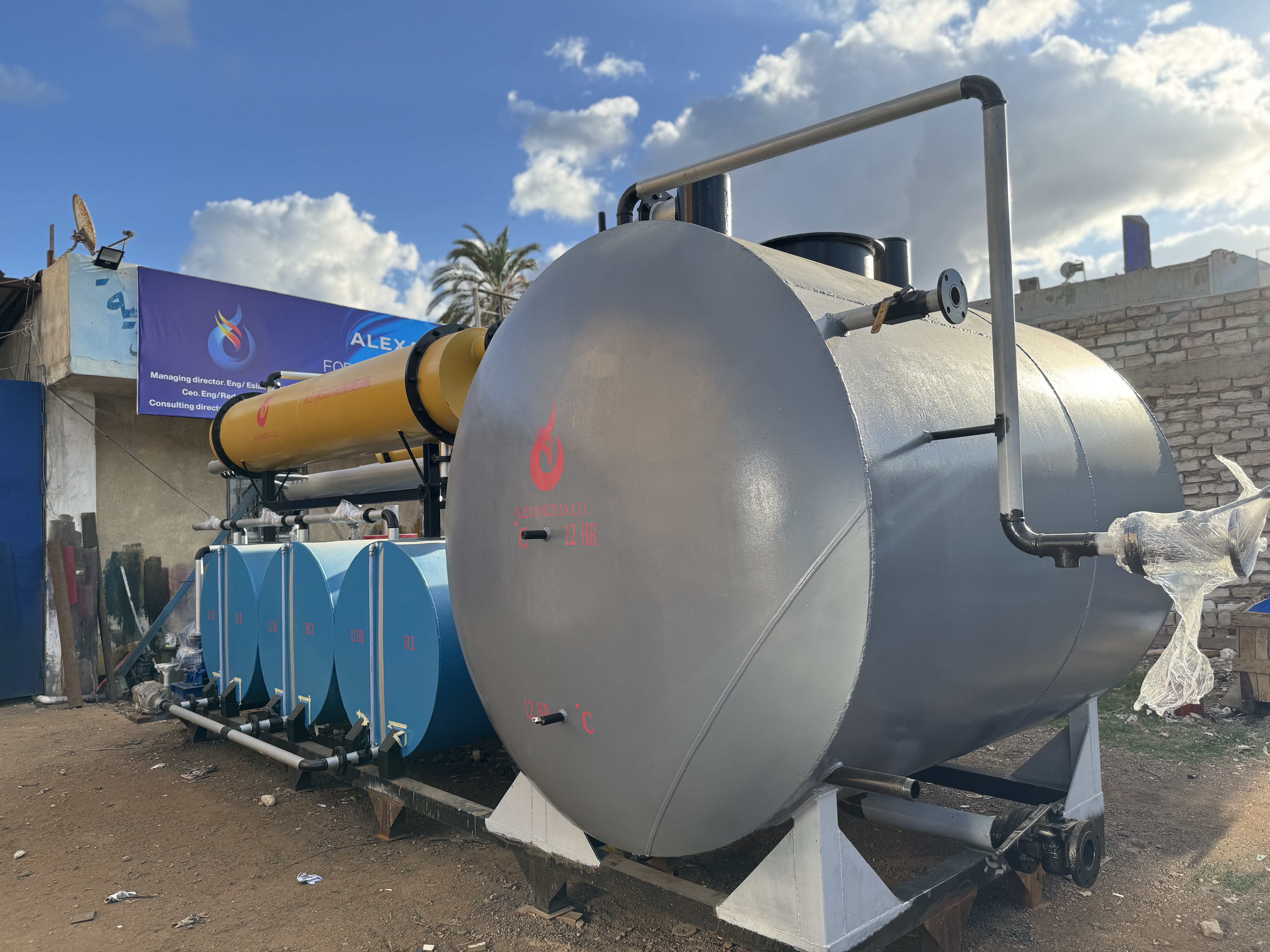

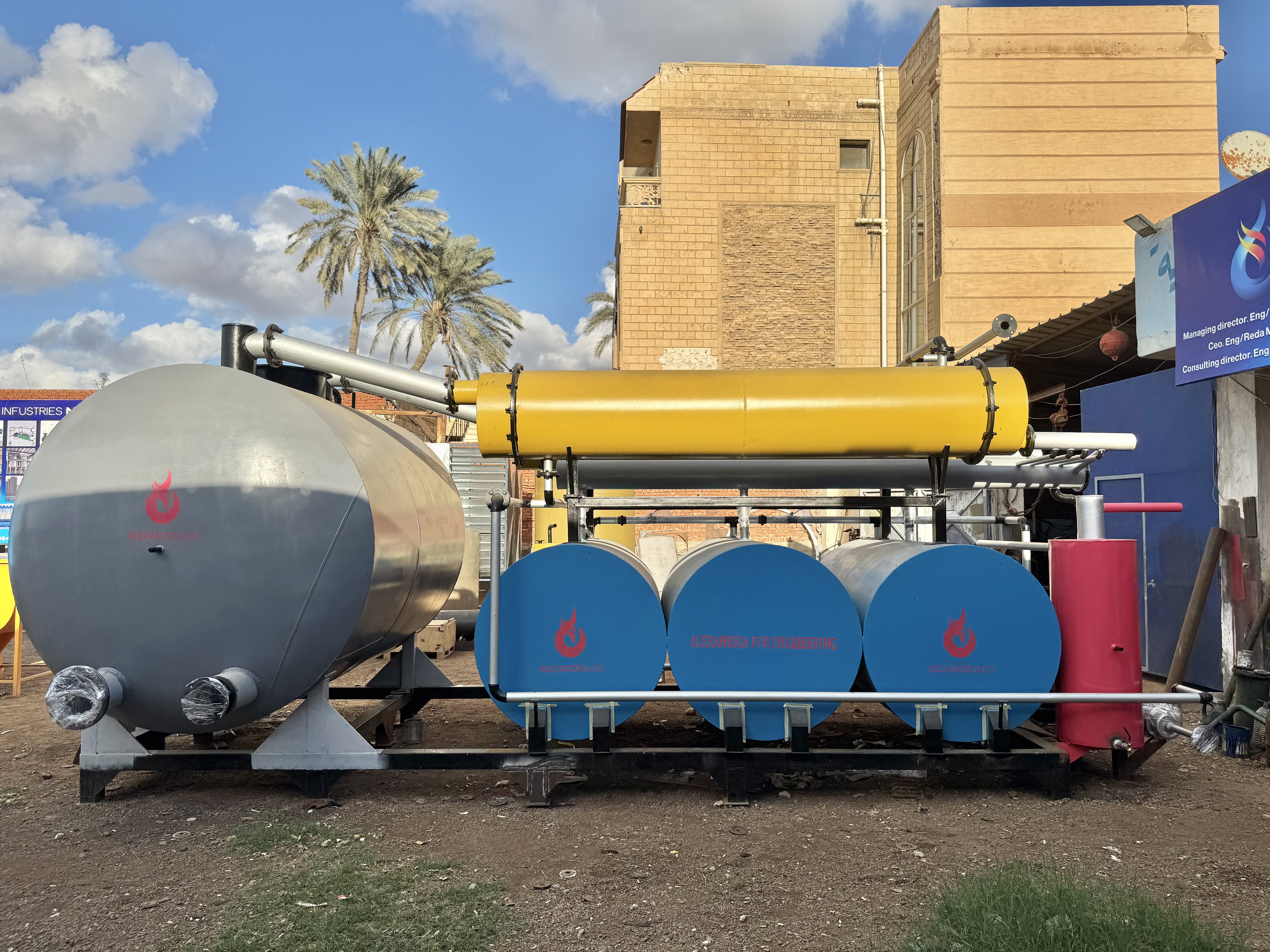

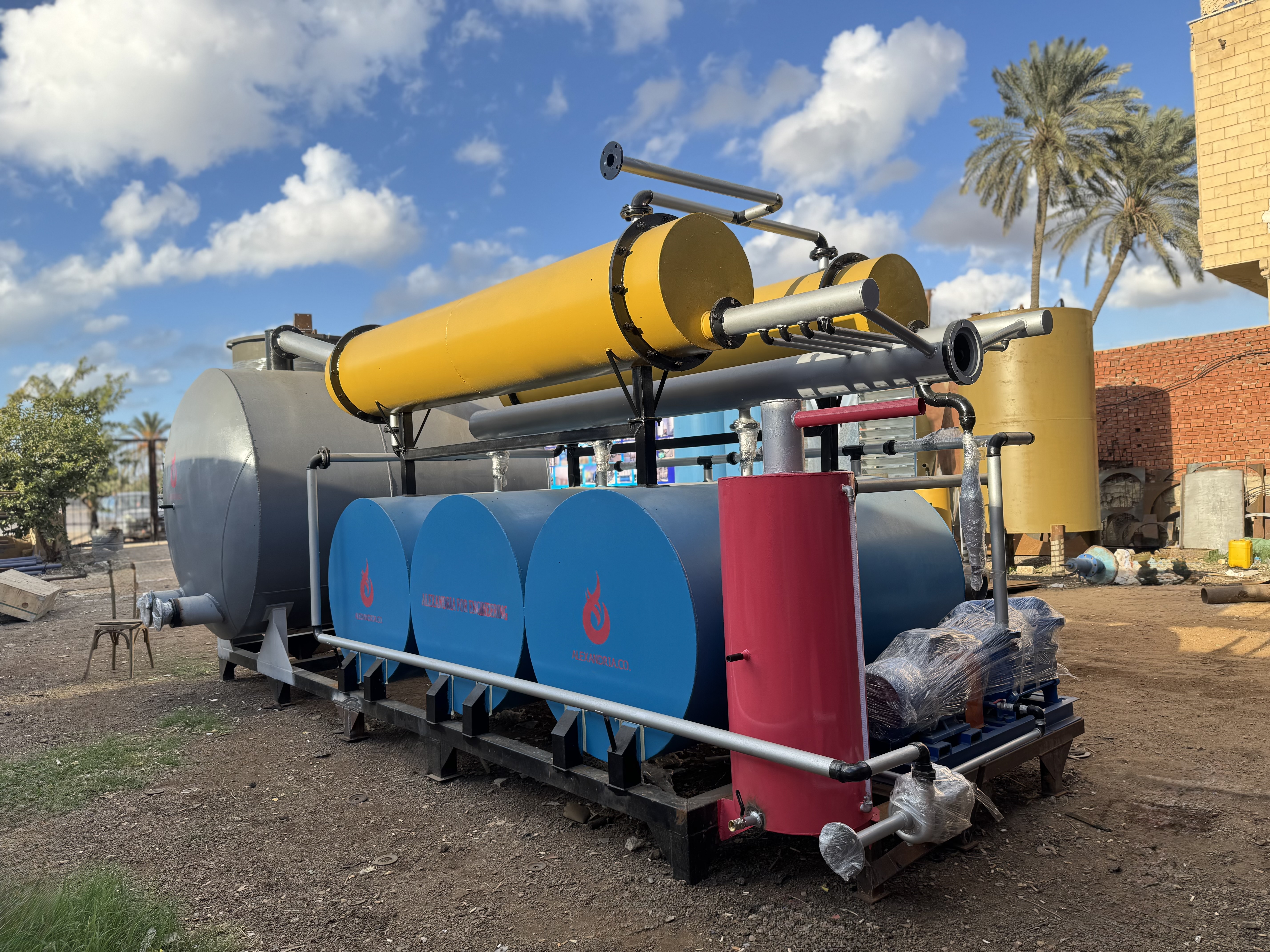

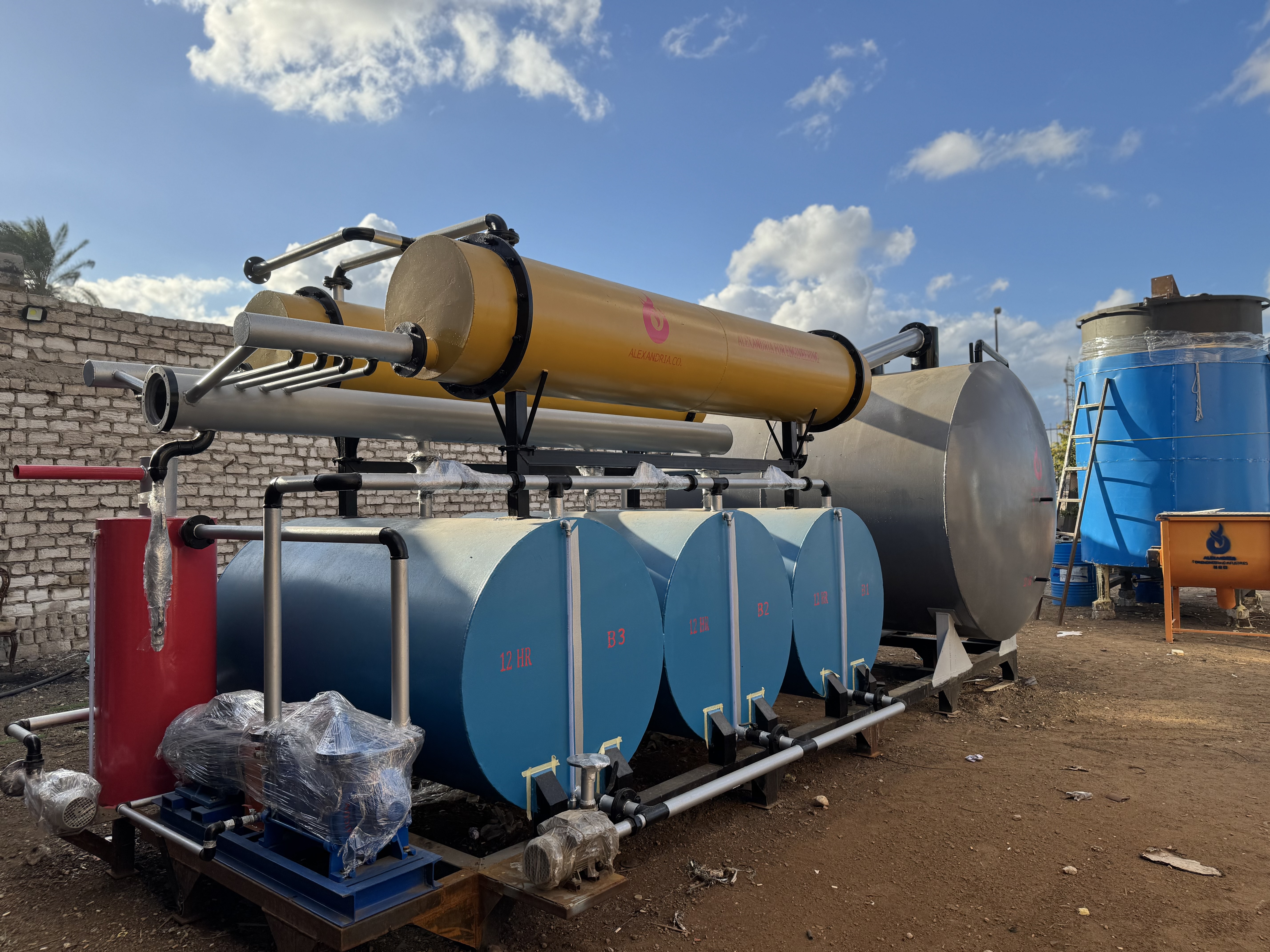

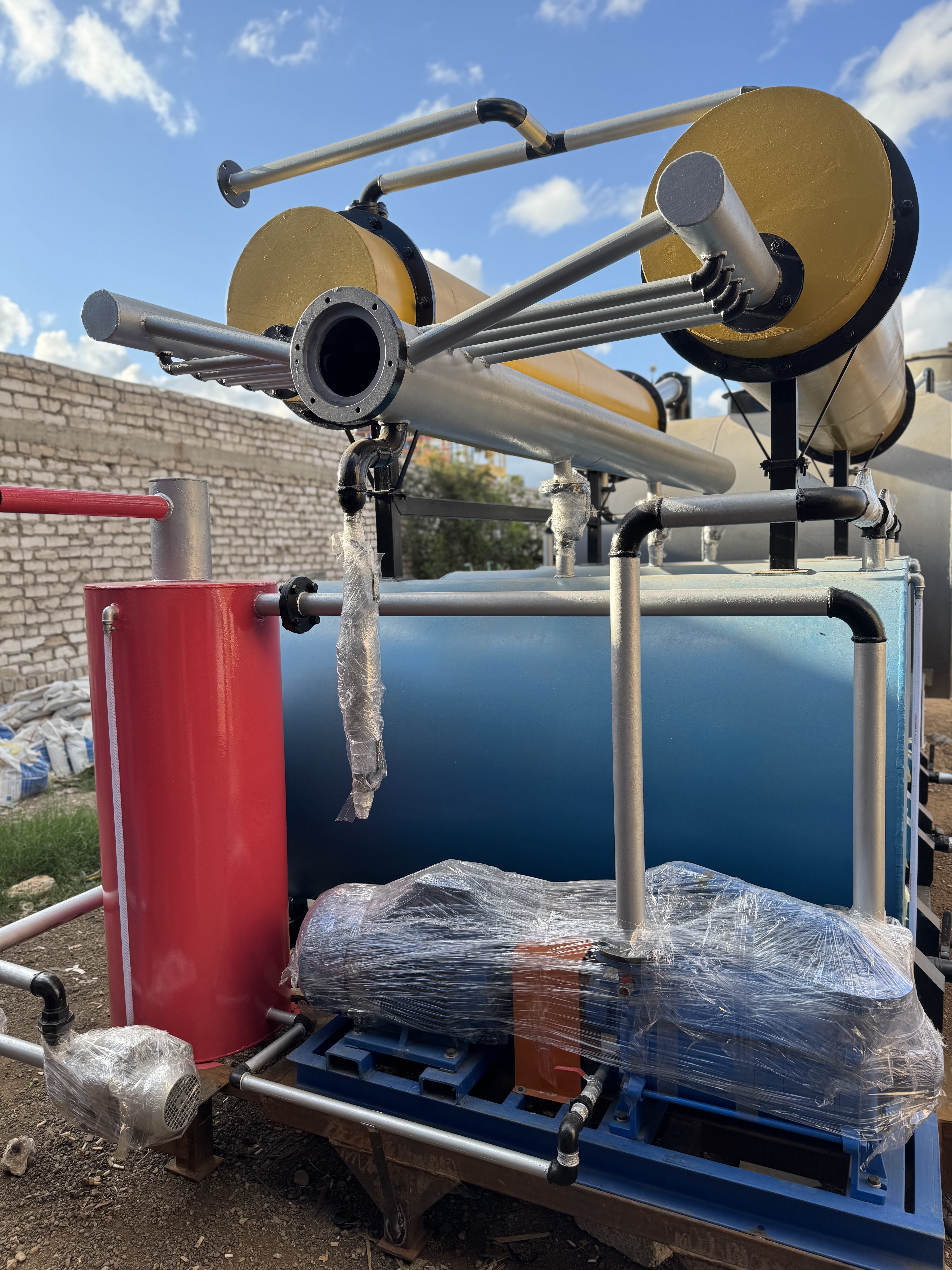

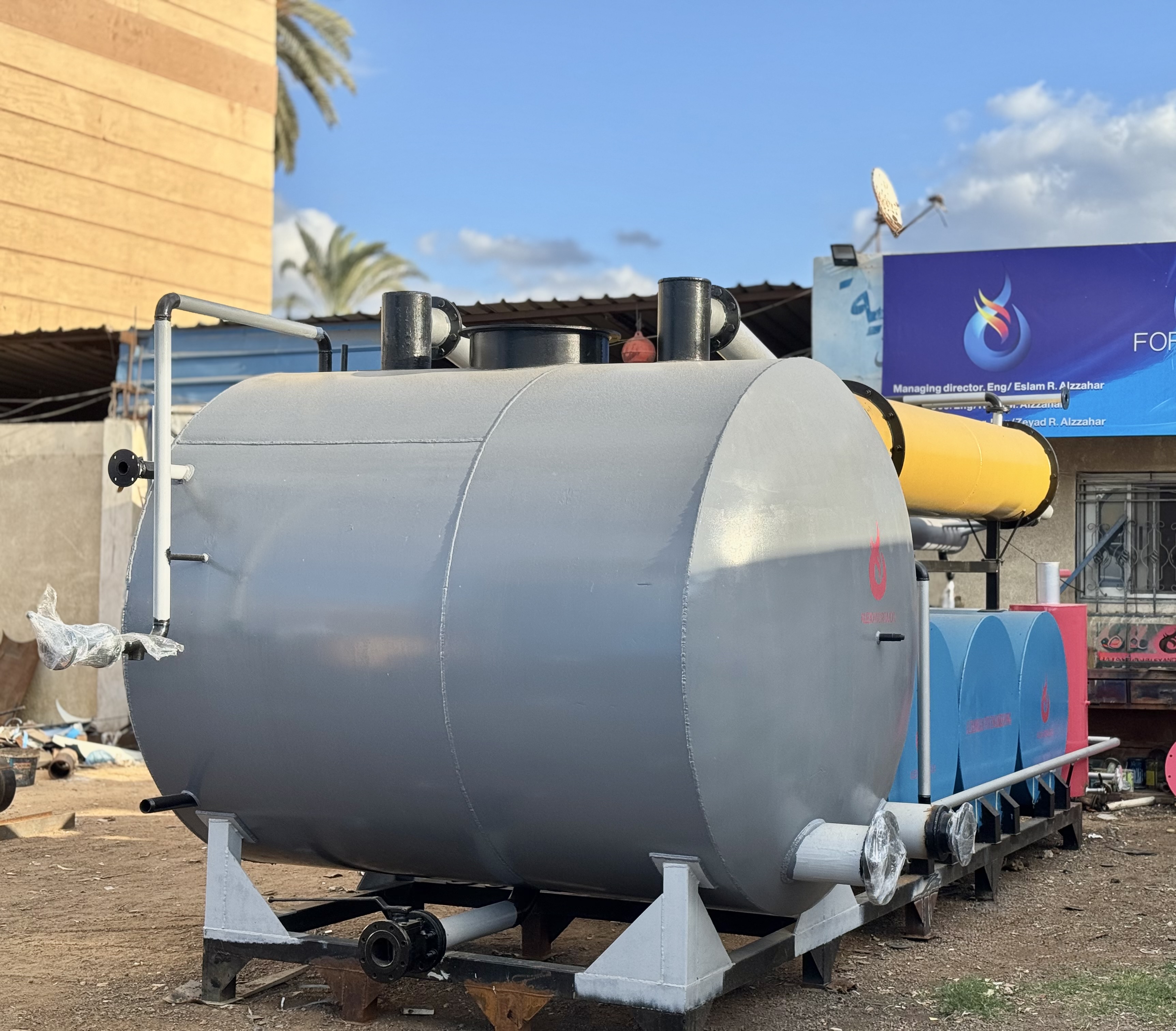

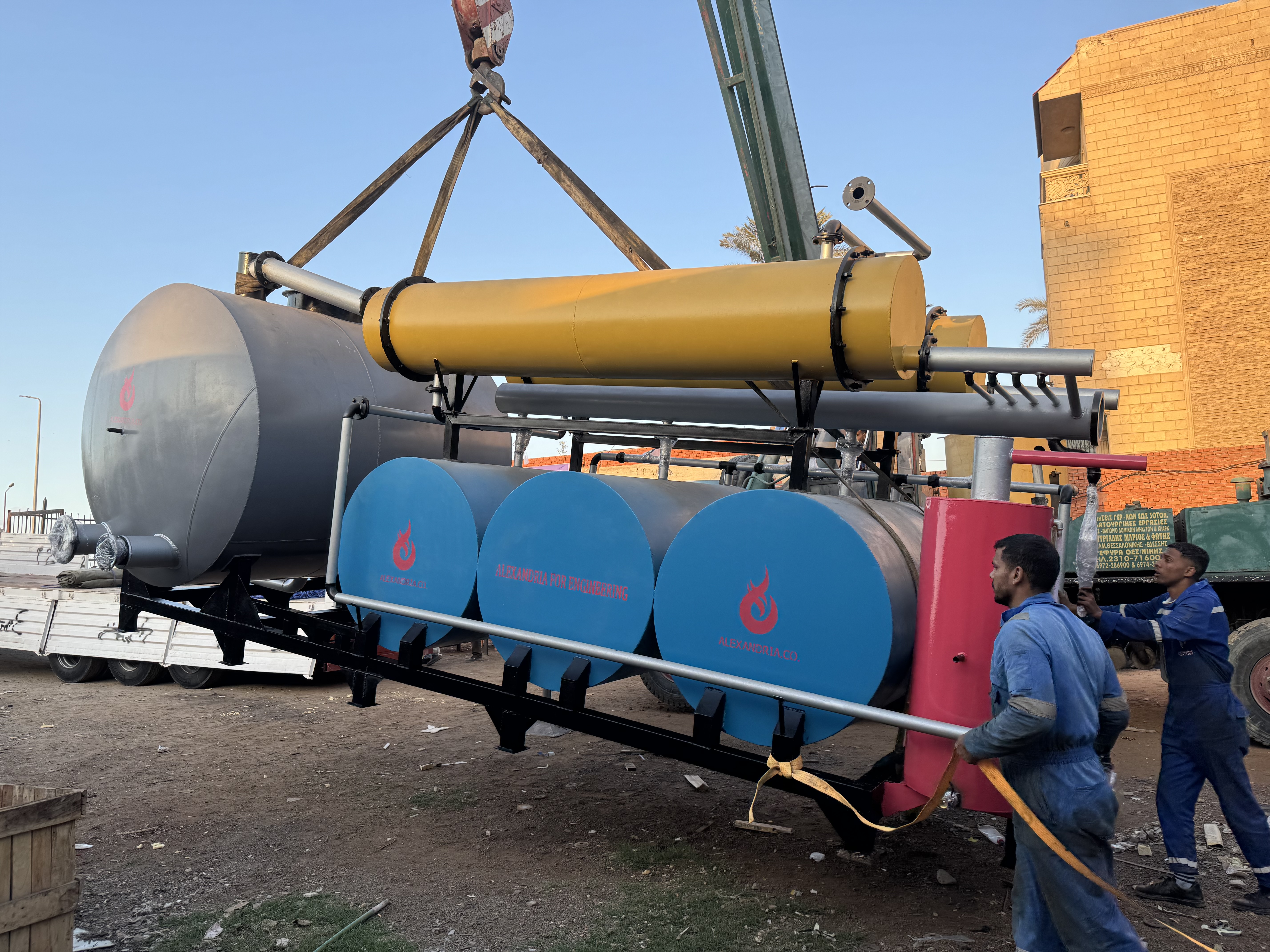

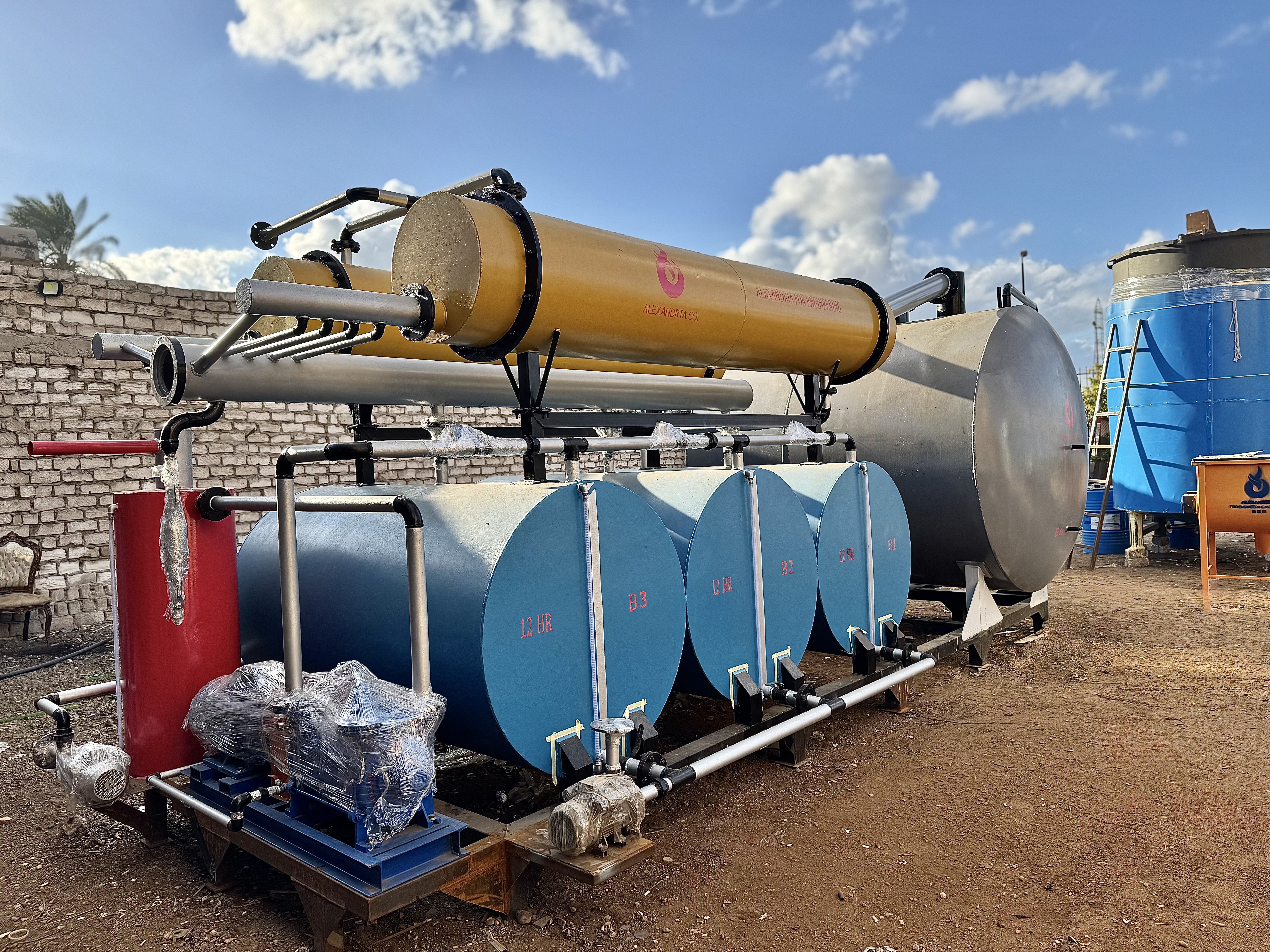

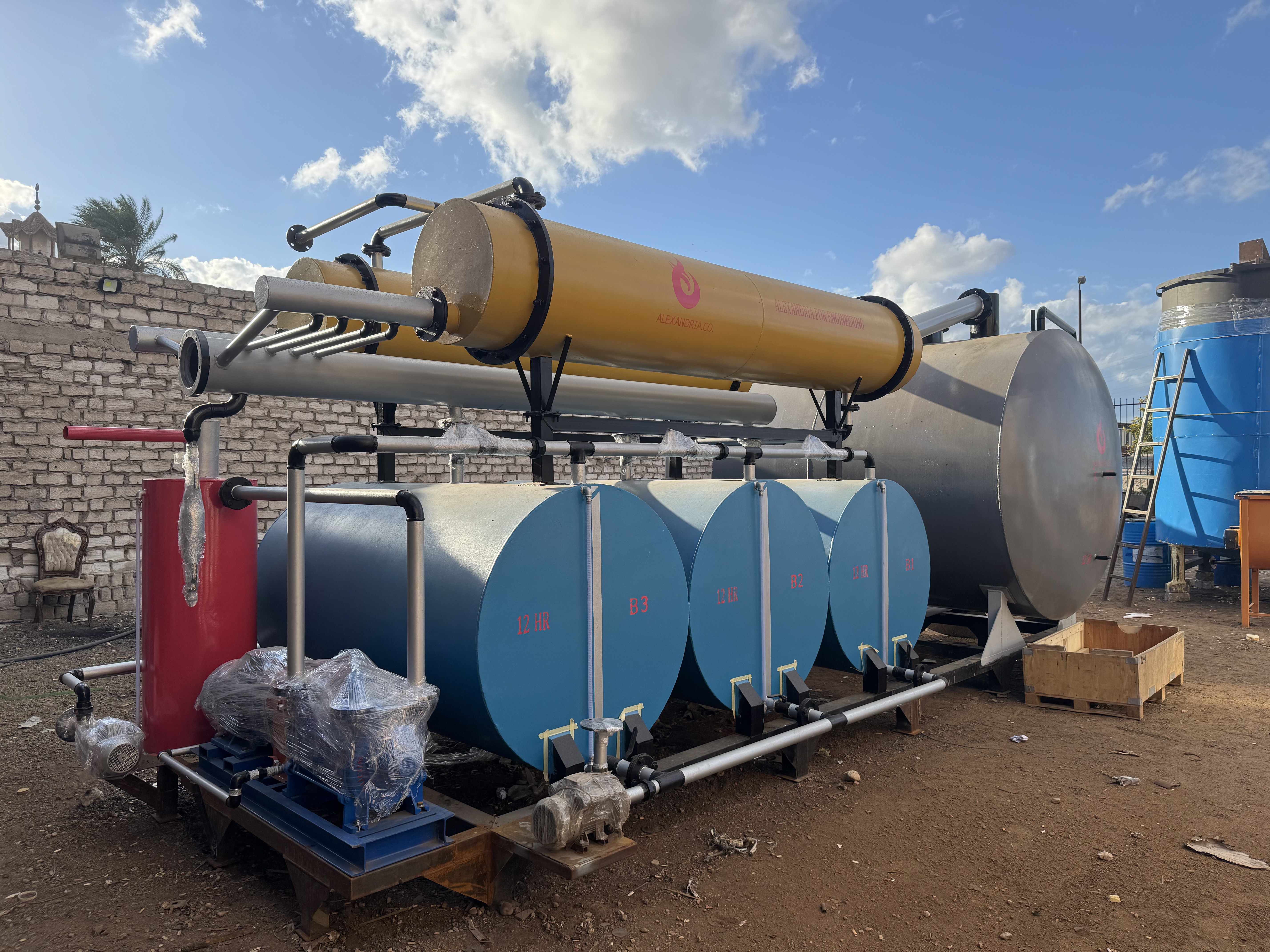

Images
